Home > JOHN DEERE > EXCAVATORS > C Series Zero Tail Swing (RTS)
Fits Models: 75C, 80C, 135C, 225CLC
Sort By:
Page of 1

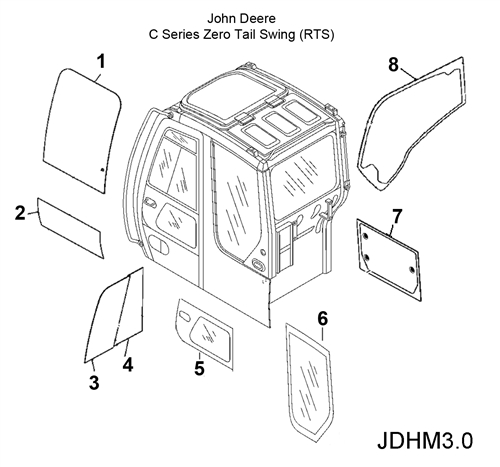

# 1. Front Windshield - C Series Zero Tail Swing (RTS) - JDHM3.1
# 1. Front Windshield - C Series Zero Tail Swing (RTS) - JDHM3.1
Our selling price: $300.85

4mm green tempered curved glass with fritt all around & 1" wiper hole / Fits Models: 75C, 80C, 135C, 225CLC Reference Dealer Part # 4457160, NEW DEALER PART# AT480125
Installation Notes: OEM has Rubber gasket attached: Ours is glue in style
more info
# 2. Lower Windshield - C Series Zero Tail Swing (RTS) - JDHM3.2
# 2. Lower Windshield - C Series Zero Tail Swing (RTS) - JDHM3.2
Our selling price: $171.61

4mm green tempered curved with fritt on sides & bottom with no holes / Fits Models: 75C, 80C, 135C, 225CLC Installation Notes: No glue, no latches, no gasket, just fits into place
Reference Dealer Part # 4457161, NEW DEALER PART# T396404
more info
# 3. Door Front Slider - C Series Zero Tail Swing (RTS) - JDHM3.3
# 3. Door Front Slider - C Series Zero Tail Swing (RTS) - JDHM3.3
Our selling price: $128.11

5mm green tempered flat stationary glass with no fritt and no holes / Fits Models: 75C, 80C, 135C, 225CLC / Reference Dealer Part # 4457173 / Installation Notes: Installs into window frame more info
# 4. Door Rear Slider - C Series Zero Tail Swing (RTS) - JDHM3.4
# 4. Door Rear Slider - C Series Zero Tail Swing (RTS) - JDHM3.4
Our selling price: $128.11

5mm green tempered flat glass with no fritt & .5" holes x2 / Fits Models: 75C, 80C, 135C, 225CLC / Reference Dealer Part # 4457174 / Installation Notes: Installs into window frame more info
# 5. Lower Door Glass - C Series Zero Tail Swing (RTS) - JDHM3.5
# 5. Lower Door Glass - C Series Zero Tail Swing (RTS) - JDHM3.5
Our selling price: $192.99

5mm green tempered flat glass with fritt all around & 5/8" holes x2  / Fits Models: 75C, 80C, 135C, 225CLC / Reference Dealer Part # 4457176 / Installation Notes: Install is a glue in style window; same as OEM more info
# 6. Left Side Quarter Glass - C Series Zero Tail Swing (RTS) - JDHM3.6
# 6. Left Side Quarter Glass - C Series Zero Tail Swing (RTS) - JDHM3.6
Our selling price: $210.29

5mm green tempered glass with fritt all around & no holes / Fits Models: 75C, 80C, 135C, 225CLC / Reference Dealer Part # 4457178 / Installation Notes: Install is a glue in style window; same as OEM more info
# 7. Back Glass - C Series Zero Tail Swing (RTS) - JDHM3.7
# 7. Back Glass - C Series Zero Tail Swing (RTS) - JDHM3.7
Our selling price: $192.54

5mm green tempered glass with no fritt & .5" holes x3 / Fits Models: 75C, 80C, 135C, 225CLC / Reference Dealer Part # 4457180 / Installation Notes: Install is a bolt in style more info
# 8. Boom Side Glass - C Series Zero Tail Swing (RTS) - JDHM3.8
# 8. Boom Side Glass - C Series Zero Tail Swing (RTS) - JDHM3.8
Our selling price: $497.53

5mm green tempered with fritt all around & no holes / Fits Models: 75C, 80C, 135C, 225CLC / Reference Dealer Part # 4457141 / Installation Notes: Install is a glue in style window; same as OEM more info
